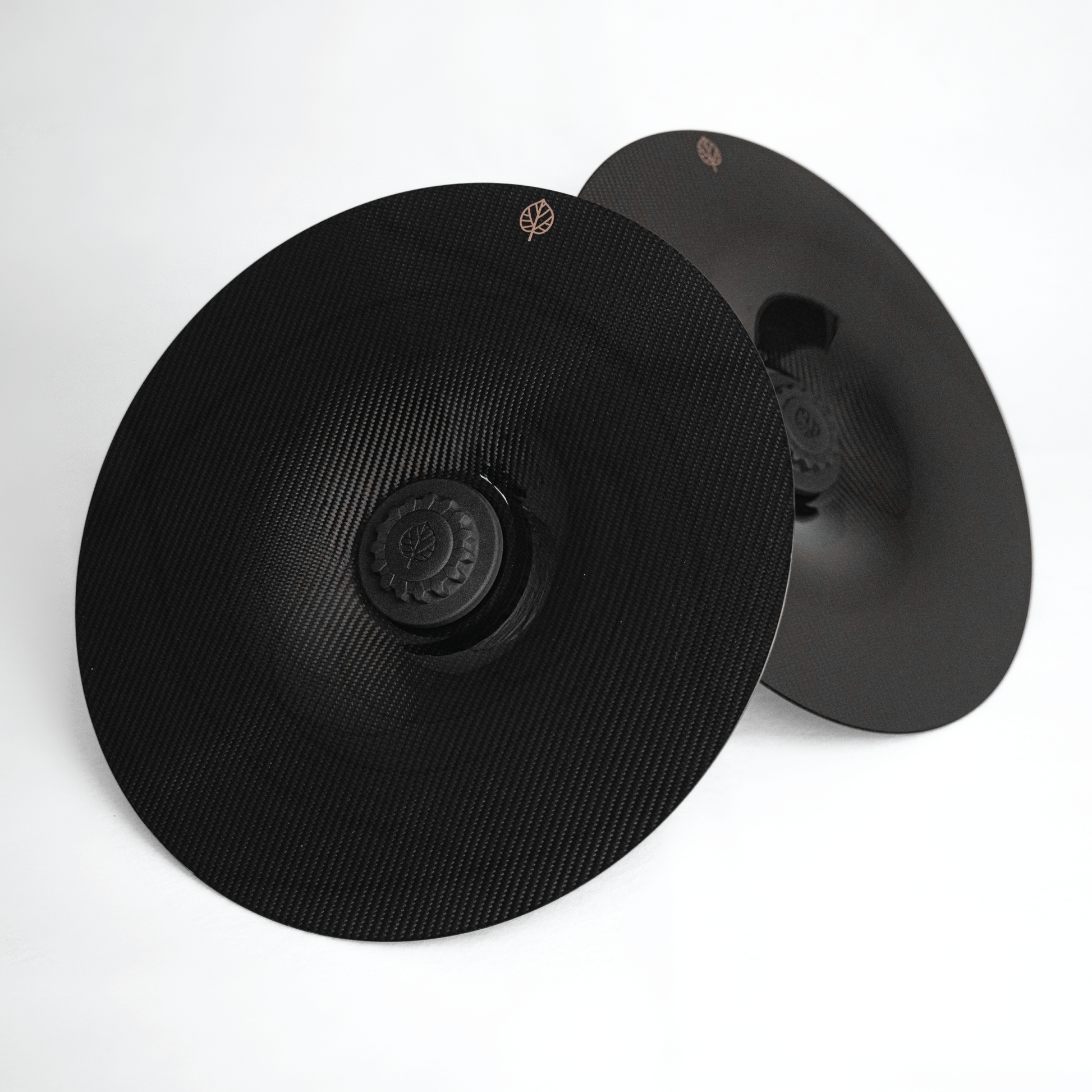

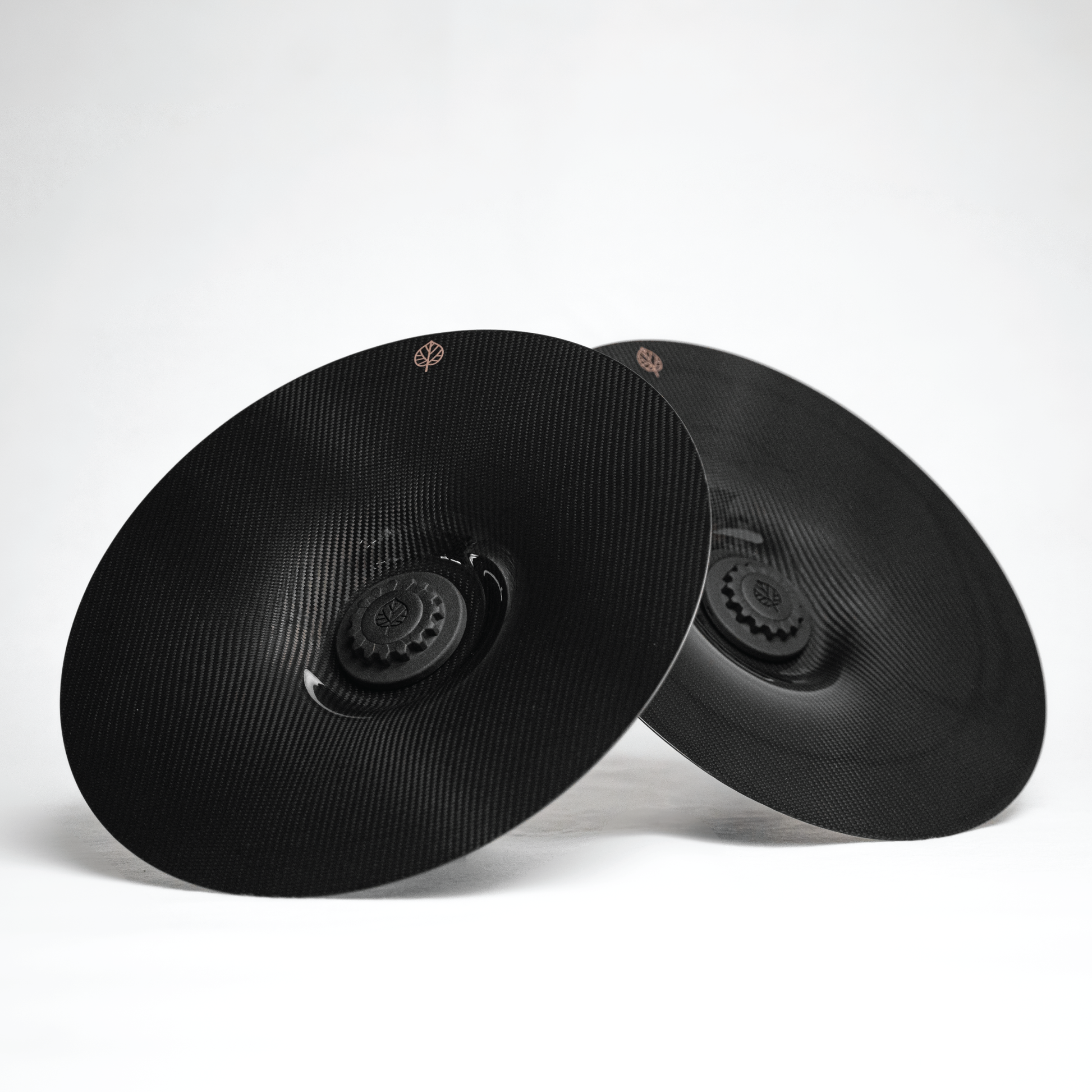

TAILOR made Carbon Fiber AERO DISC EVO set for 5 LUG wheels
Set of lightweight carbon fiber wheel covers for reduced drag.
Aero discs play a crucial role in streamlining airflow around the wheels, preventing turbulence and reducing the drag coefficient.
- -
[ DESCRIPTION ]

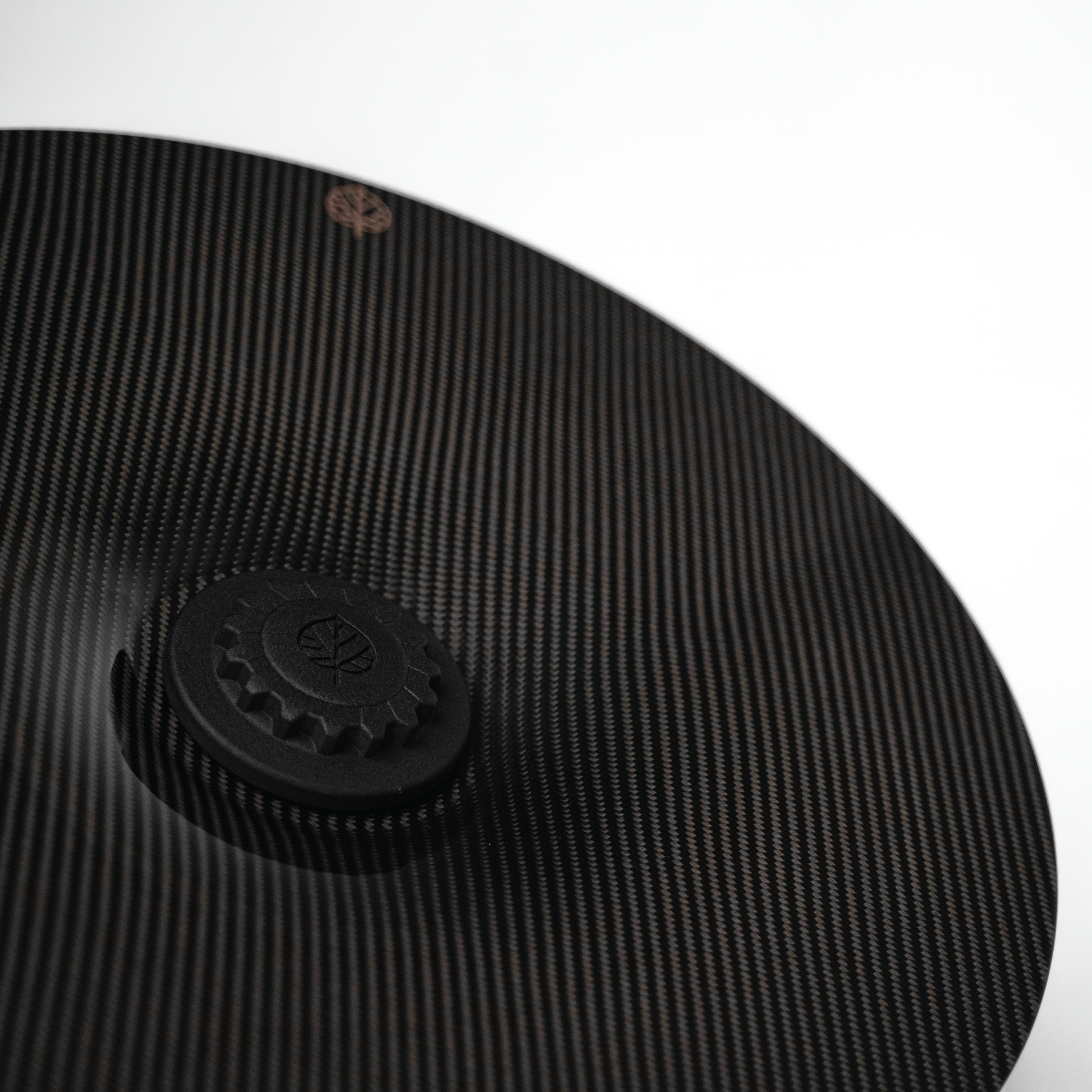

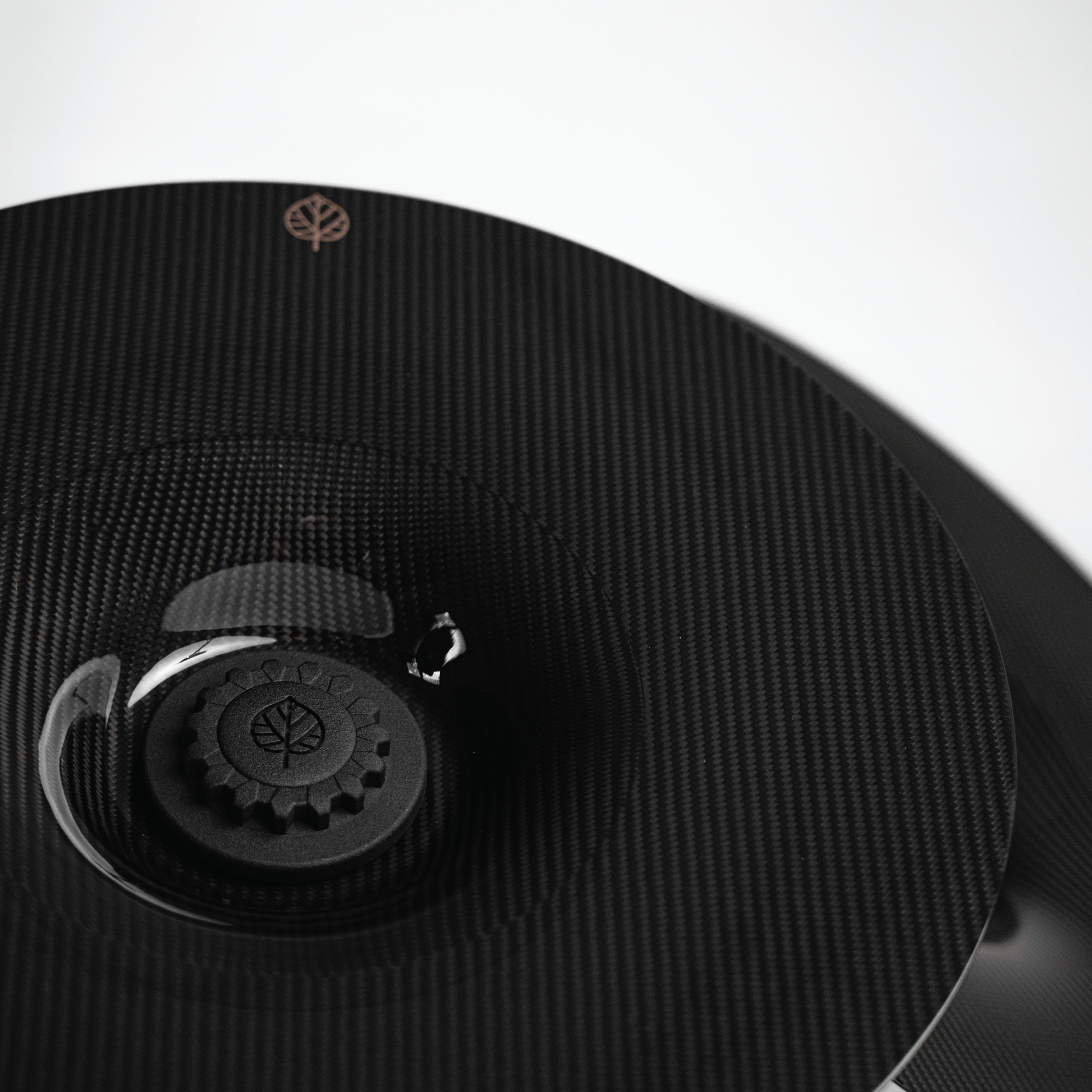

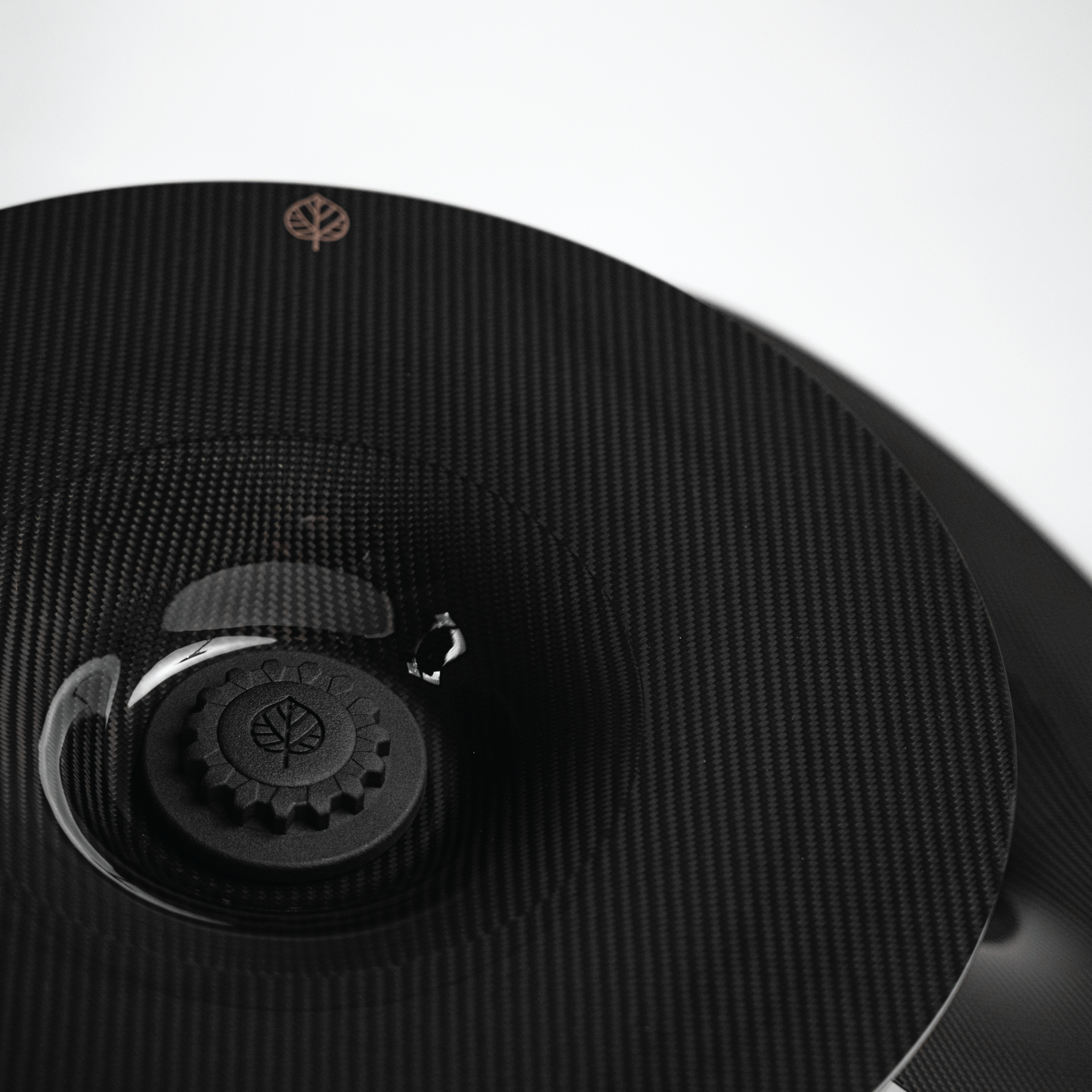

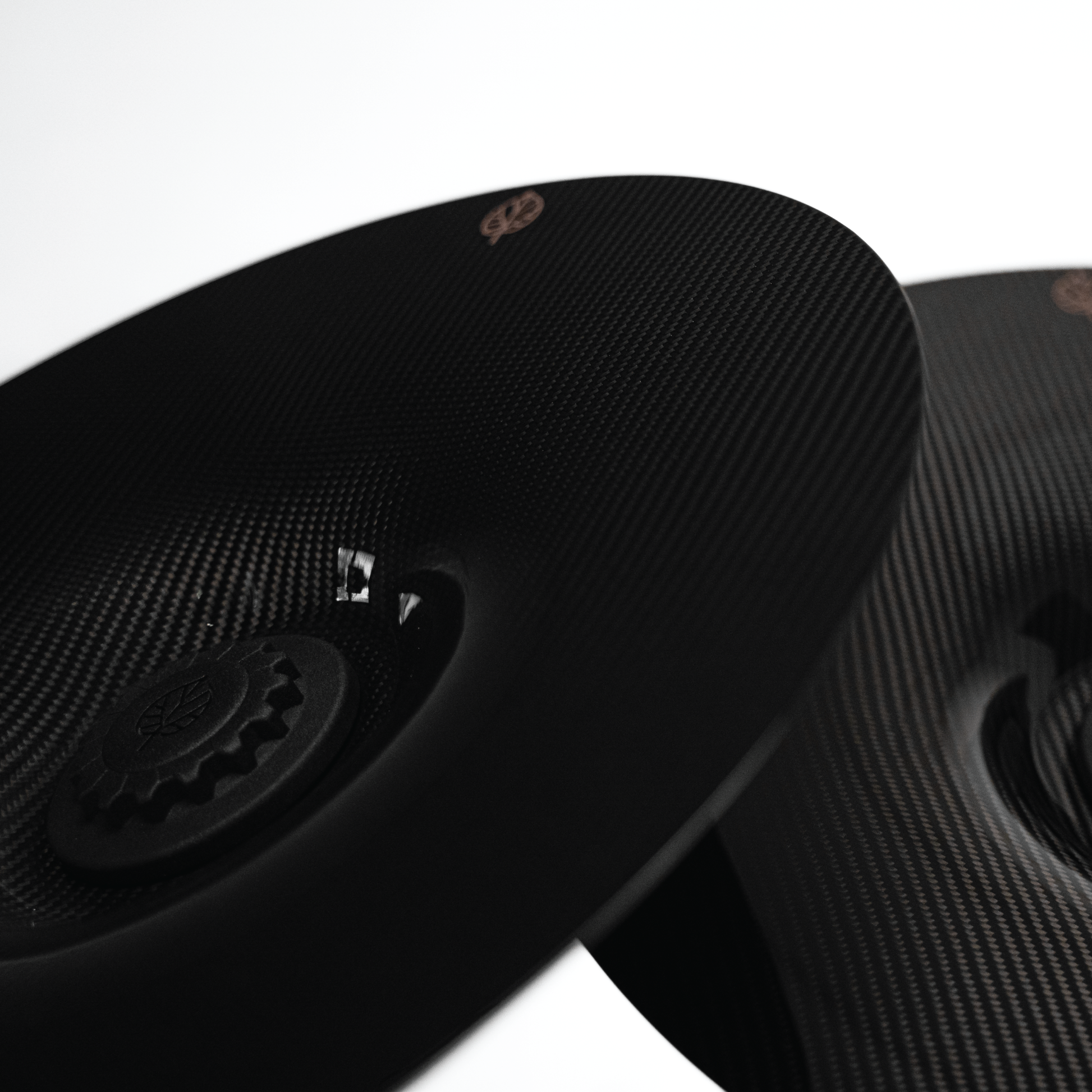

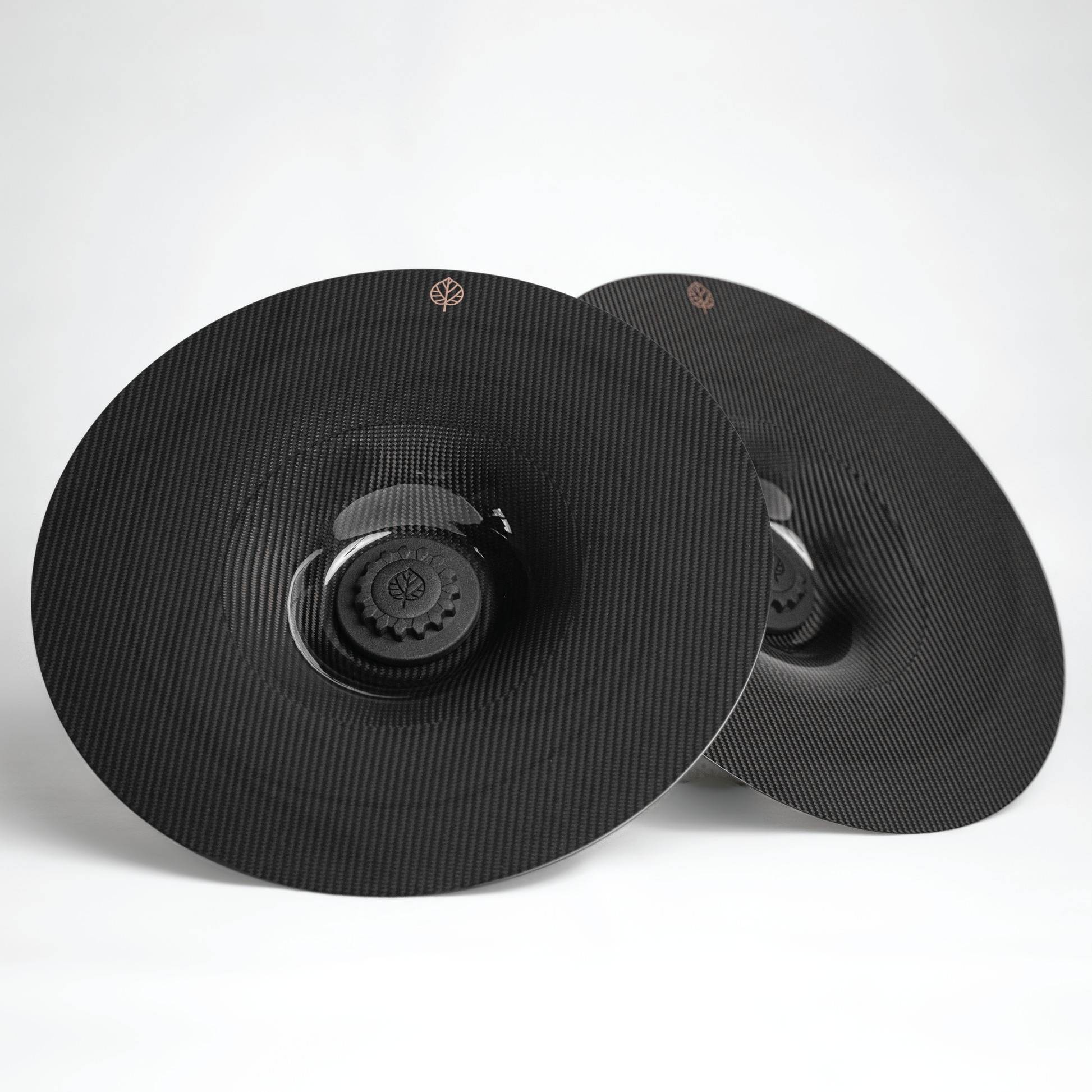

Carbon fiber Aero discs are made with pre-preg carbon fiber, cured in autoclave. The set is fully reversible and requires no cutting or modifying of any original parts. It supports an OEM+ look, with stunning carbon fiber appearance in a variety of finishes, all providing great UV protection.
Tailor made option is compatible with a majority of 5 lug wheels. Please see the dimensions chart below for the data we would need to manufacture your own custom set of aero discs.
- -
[ FINISHING STYLES ]

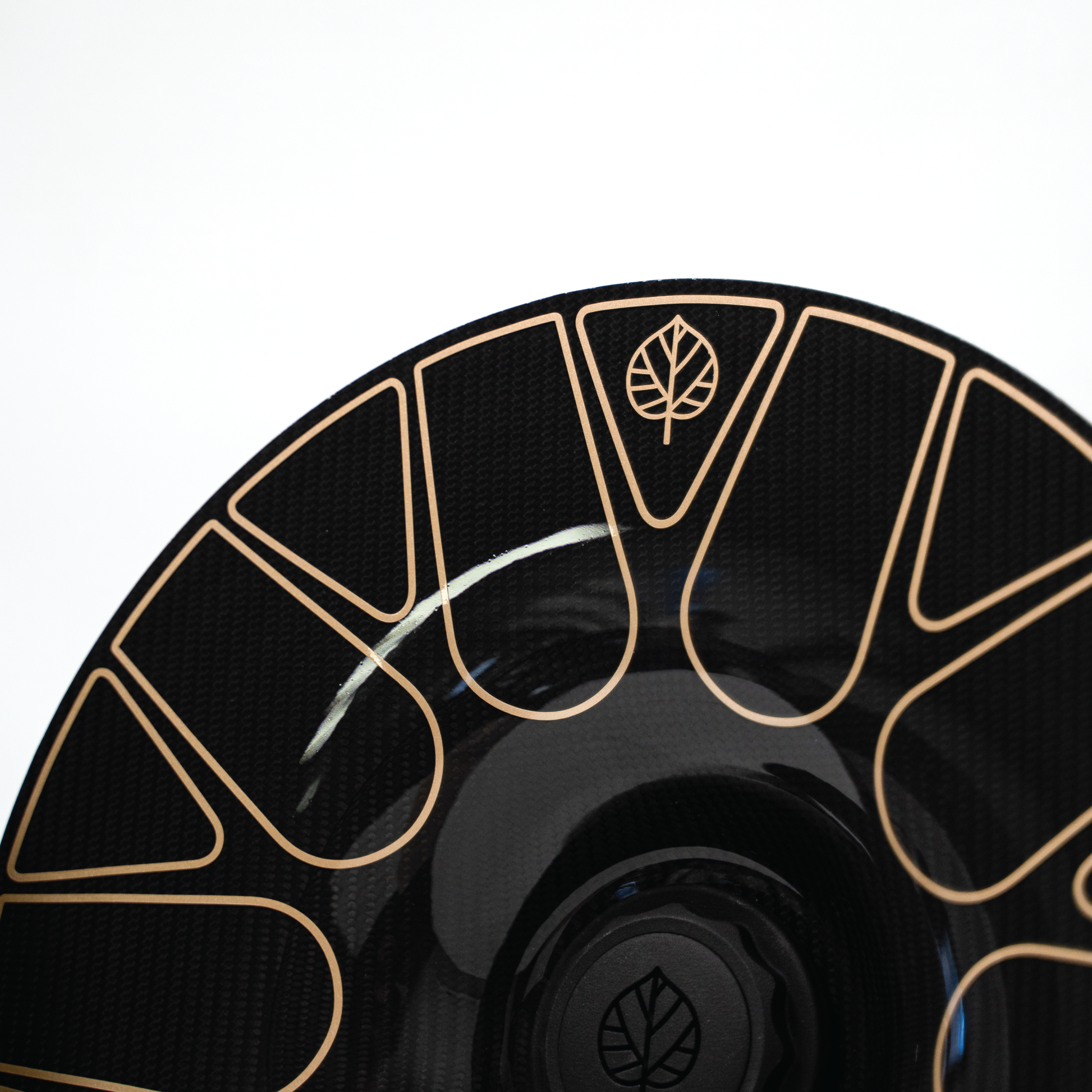

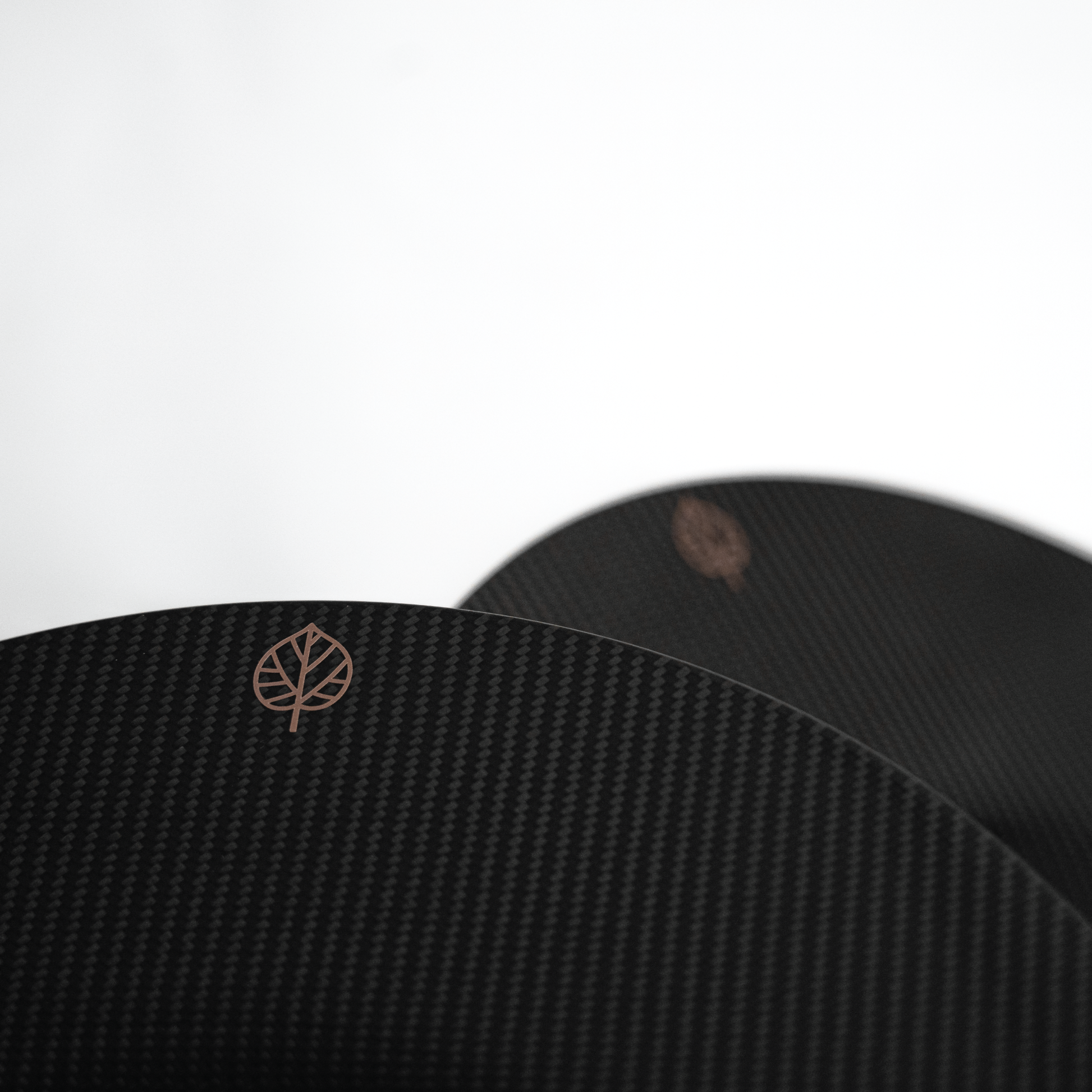

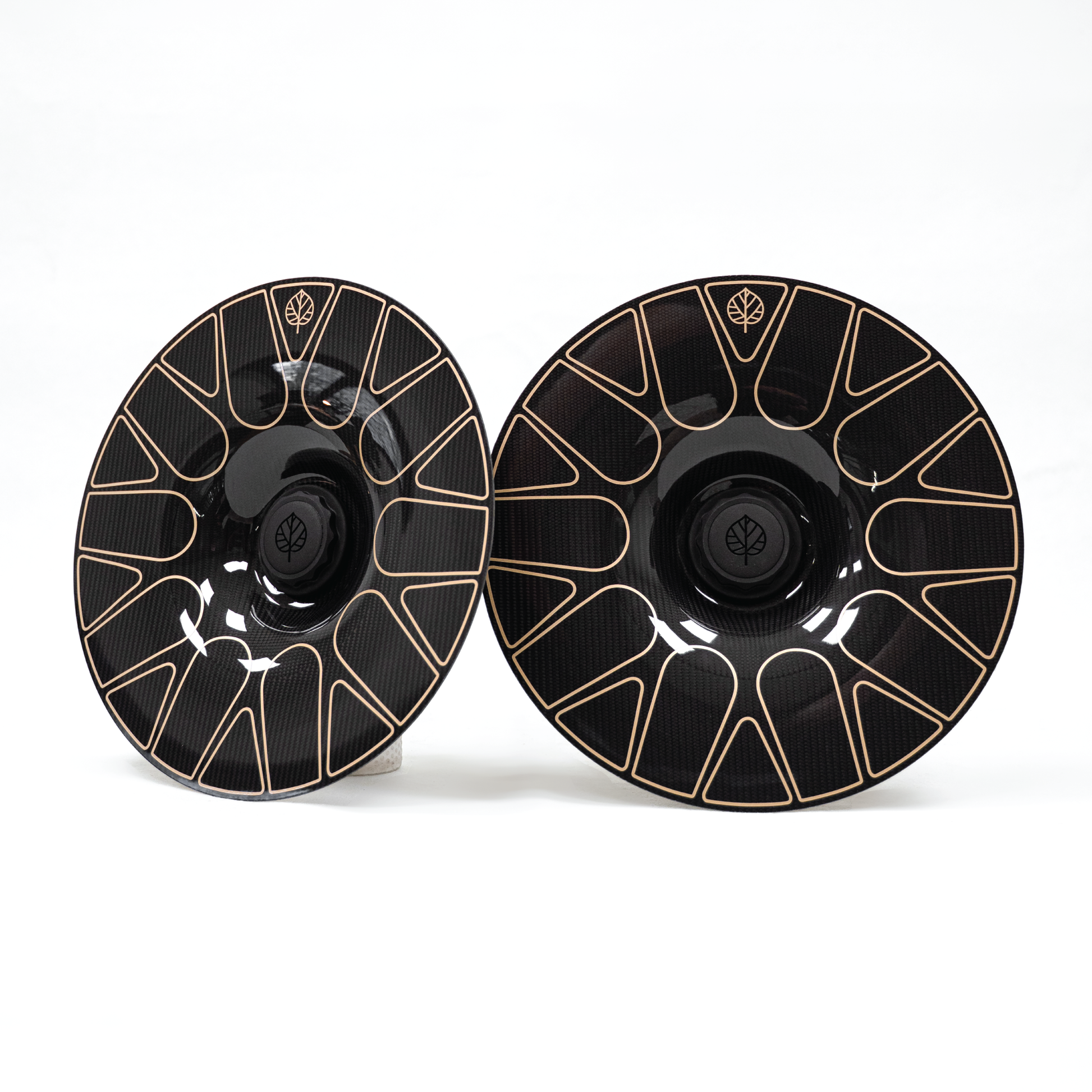

Choose between a matte and gloss carbon fiber finish. Bespoke decals in a variety of colours can also be designed. Please write your wishes in the Cart comment section.
- -
[ INSTALLATION PROCESS ]
The installation process of the Aero discs is straightforward and can be done by any car enthusiast. It comes with detailed instructions to ensure a smooth and hassle-free installation.
Each Aero Disc assembly consists of several components: the visible carbon fiber disc on the wheel face and the hidden mounting mechanism located within the central wheel opening.
To install the Aero Disc assembly:
1. Insert the base from the back of the wheel into the central wheel opening.
2. Fit the centering ring from the front of the wheel into the wheel cap recess.
3. Secure the base and hub together using the provided nut and washer.

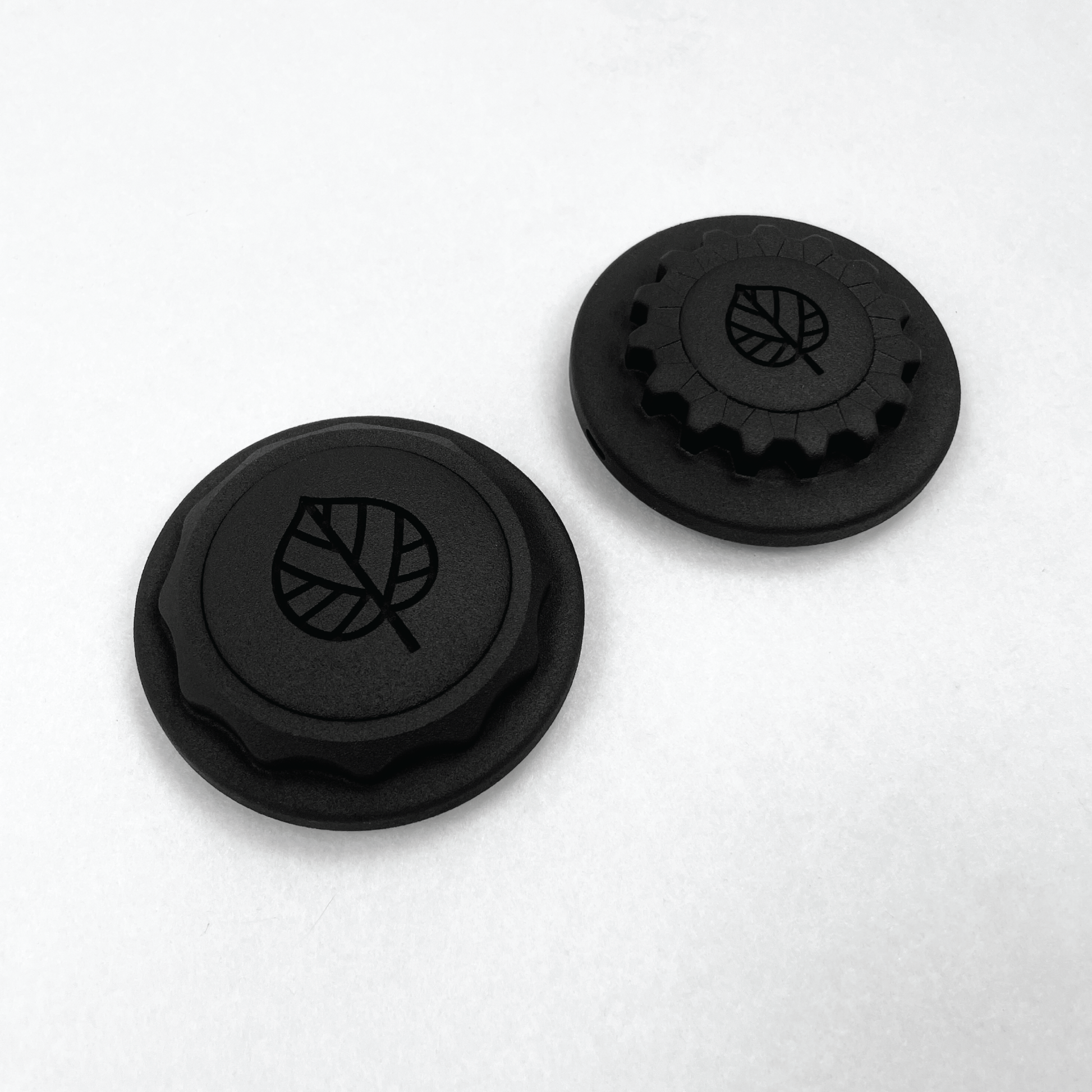

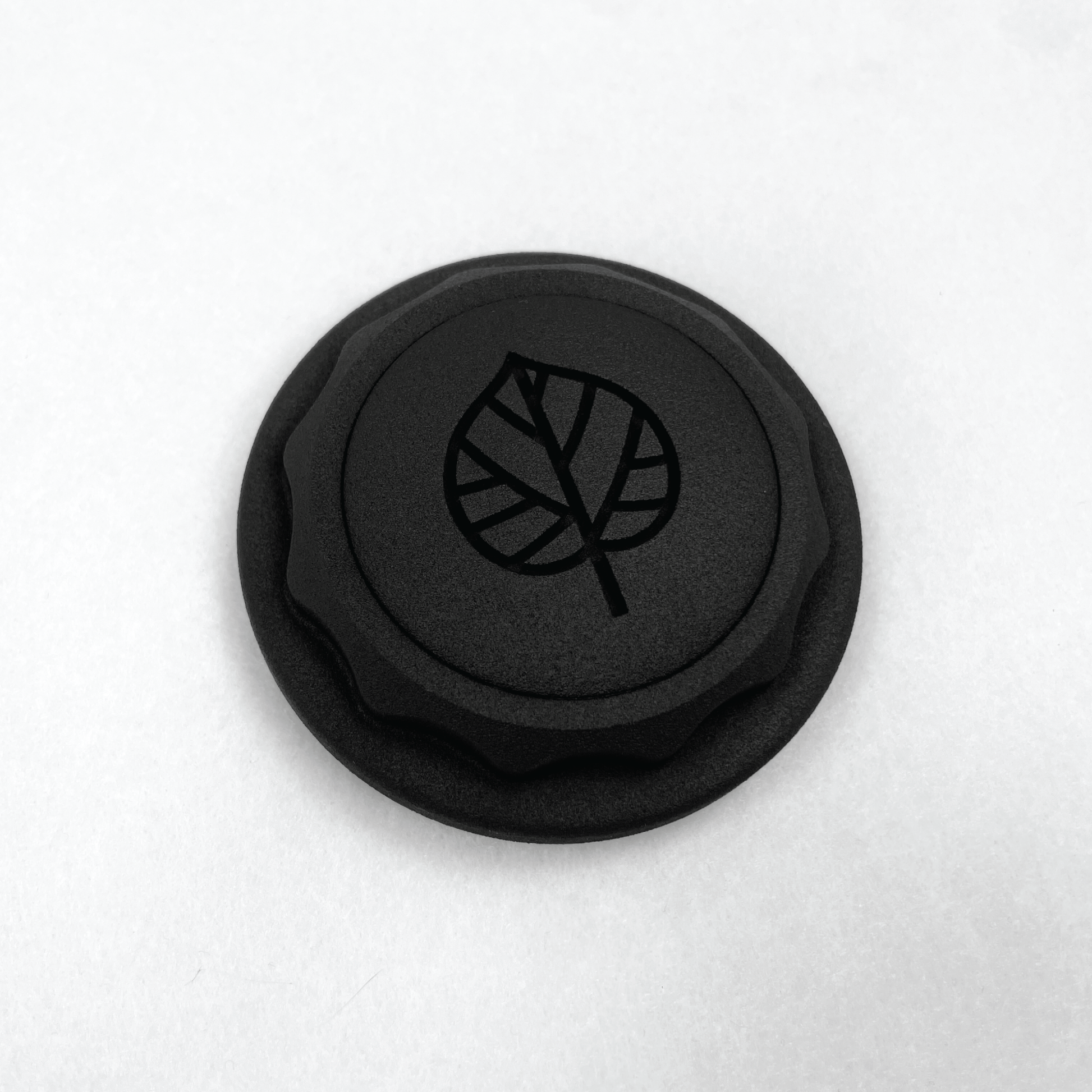

4. Install the custom wheel cap to complete the assembly.
- -
[ DISCLAIMER ]
For purchases outside Europe, import taxes and customs duties may apply.
GOLD LEAF lightweight performance is not sponsored, associated, approved, endorsed nor, in any way, affiliated with Dr. Ing. h.c.F. Porsche, AG (www.porsche.com). The Porsche® name and crest are trademarks of Dr. Ing. h.c.F. Porsche AG, and any other products mentioned are the trademarks of their respective holders. Any mention of trademarked names or other marks is for purpose of reference only.
Materials
Materials
2x2 carbon weave
Shipping & Returns
Shipping & Returns
Shipping possible worldwide.
Dimensions
Dimensions
Packaged in a box: 50x50x25cm
![TAILOR made CARBON FIBER AERO DISCS [EVO] for 5 LUG wheels](http://goldleafperformance.com/cdn/shop/files/AERO_DISC_EVO_Center_Caps_4.png?v=1762186587&width=1445)
[ DIMENSIONS INPUT ]

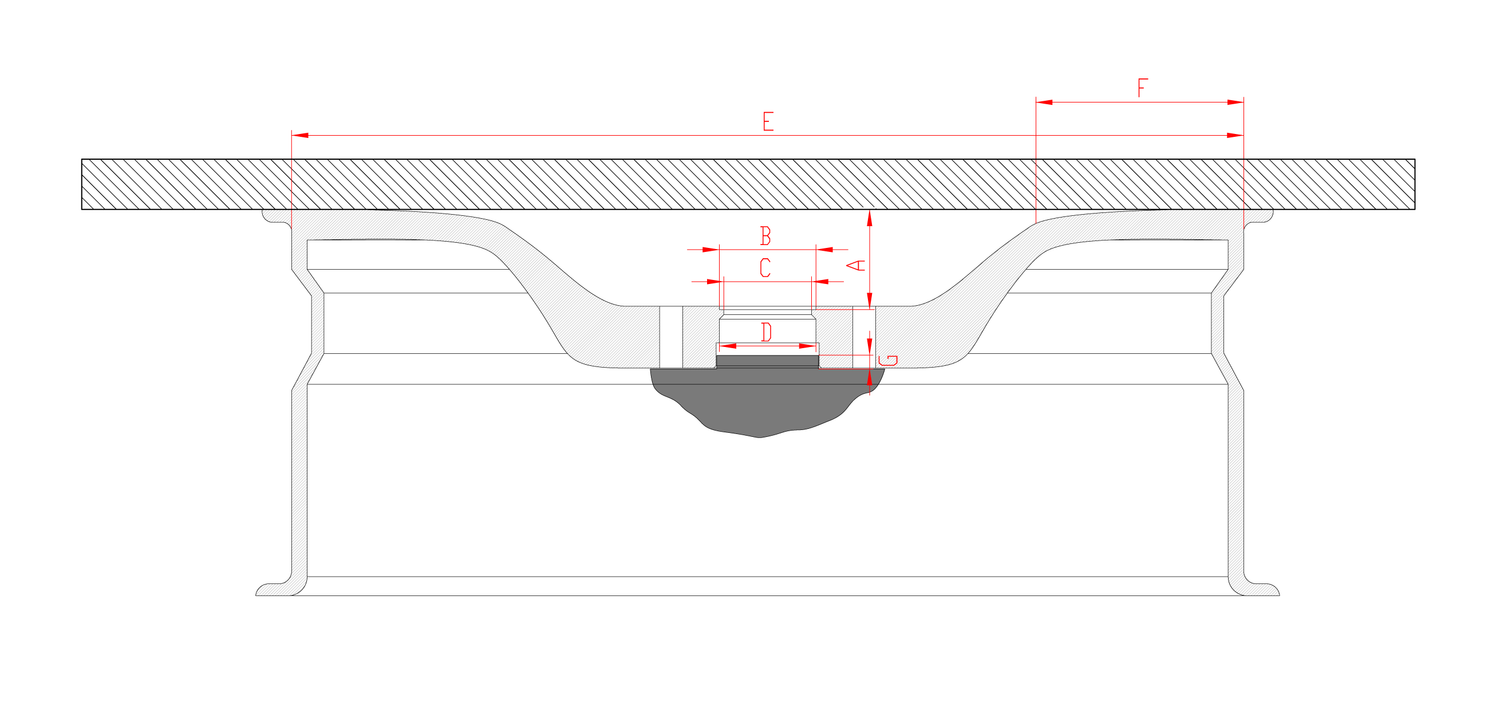

For a tailor made aero disc solution, please provide us with the dimensions presented on the chart.
Write the dimensions in the Special instructions segment in your Cart.
[ DIMENSIONS EXPLANATION ]
A - Wheel face concavity (distance from wheel lip to the center cap recession)
B - Center cap recession diameter
C - Center cap ridge diameter
D - Wheel center cavity diameter
E - Wheel diameter
F - Distance from spoke break to wheel lip
G - Depth of wheel hub ingress
-
[ CHARACTERISTICS ]
- More laminar flow around the wheels for lower drag.
- 100% pre-preg carbon fiber, autoclave cured
- 2x2 carbon weave [ 3K twill ]
- UV protection varnish
- Perfect fit. No adjustment required.
- 1 year guarantee
-
[ KIT INCLUDES ]
- 2x carbon fiber aero disc
- Hardware
- Installation manual
-
[ AVAILABILITY ]
- Made to order
- Lead time: 3 weeks
